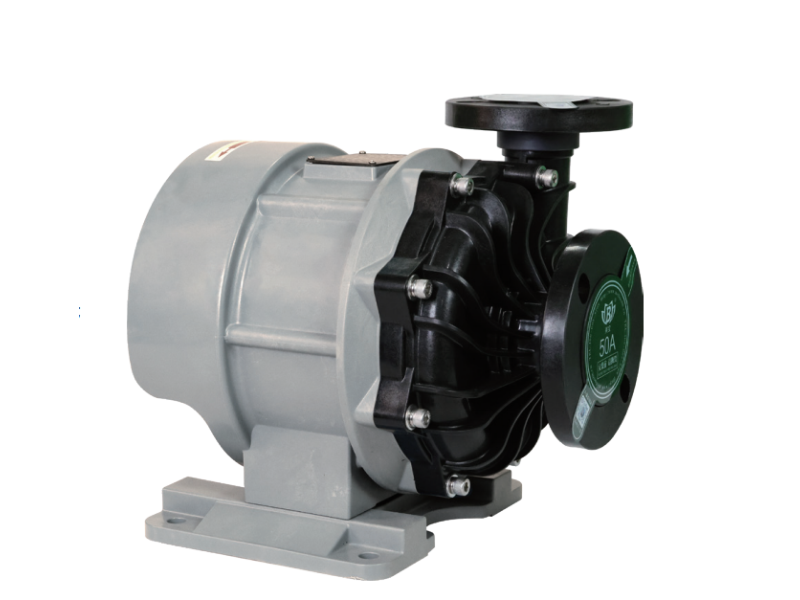

Bomba magnética de accionamiento directo de imán permanente de la serie MMF

En stock | Listo para embarcar

Bomba magnética de accionamiento directo de imán permanente de la serie MMF

Cero fugas, Motor de imán permanente, Eficiente energético, Protección IP66, Resistente a la corrosión, Diseño compacto, Súper silencioso, Control de frecuencia, Diseño patentado, Compatible con sala limpia

Especificaciones rápidas

45 m³/h
Flujo máximo

37 m
Max Cabeza

0.37-7.5

kW Potencia

-
temperatura máxima

-
Presión máxima

-
Garantía

Solicitar cotización

Respuesta en 24 horas | Soporte técnico disponible

Product Dewspiption

The Meibao MMF Series is a revolutionary permanent magnet direct drive magnetic pump that sets new standards for energy efficiency, compactness, and quiet operation.

Featuring a beyond-IE5 efficiency motor with frequency conversion control, this series delivers significant energy and cost savings compared to traditional pump designs.

The lightweight, fully encapsulated plastic housing provides IP66 protection and exceptional corrosion resistance.

With a super-quiet, fanless cooling design, the MMF Series is specifically engineered for cleanroom environments and applications with strict temperature and humidity requirements, making it the ideal choice for semiconductor, pharmaceutical, and high-purity chemical processing.

Energy-Saving & High-Efficiency Design

Equipped with a beyond-IE5 efficiency motor and frequency conversion control, delivering substantial energy savings and reduced operating costs compared to conventional pump systems.

Super-Quiet Operation

Fanless cooling design ensures minimal noise levels and low temperature rise, making the MMF Series ideal for noise-sensitive environments such as cleanrooms, laboratories, and semiconductor fabrication facilities.

High Protection & Corrosion Resistance

Integrated, fully encapsulated plastic housing provides IP66 protection against dust and water ingress. Constructed from high-performance materials including GFRPP, CFRPP, PVDF, and ETFE, offering excellent resistance to aggressive chemicals.

Lightweight & Compact Design

Embedded, modular component design results in a lightweight, space-saving footprint that simplifies installation and integration into existing equipment.

100% Leak-Free Magnetic Drive

The sealless magnetic coupling eliminates the risk of leakage, protecting operators and the environment while reducing maintenance costs.

Performance Curve

Flow vs. Head Performance Chart

PDF download available on request

Typical Applications

Semiconductor and photovoltaic manufacturing.

Cleanroom fluid handling systems.

Pharmaceutical and biotechnology processing.

High-purity chemical transfer and circulation.

Laboratory and R&D fluid systems.

Flujo máximo

m³/h

Max Cabeza

Rango de potencia

0.37 - 7.5

potencia kW

Certificación

ATEX Opcional

Especificaciones técnicas

Modelo Rango

MMF-220 ~ MMF-868

Tipo de bomba

Bomba magnética de accionamiento directo de imán permanente

Materiales

GFRPP, PVDF, CFRPP y CFRTFE

Conexión

Brida / Unión

Temperatura máxima

Presión máxima

Voltaje

220V/380V/415V

Garantía

Sistema de codificación del modelo

MB 50 PP 380V

MMF = Serie

PP = Material

Opciones de material

GFRPP

Productos químicos generales, max 80°C

PVDF

Alta pureza, max 100°C

CFRTFE

Alta temperatura, max 120°C

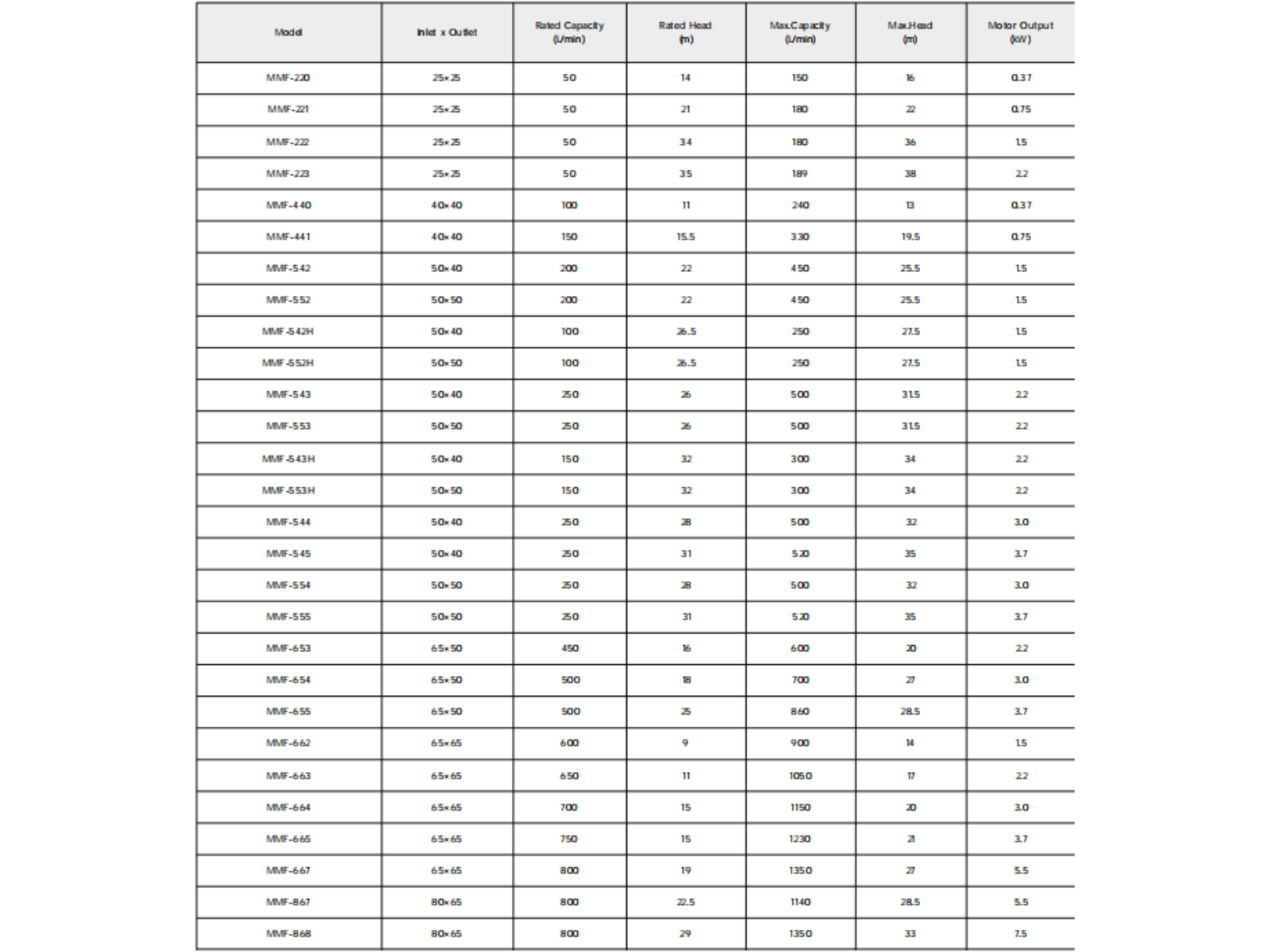

Tabla de parámetros detallada

Descargar PDF

modelo	Entrada × salida	Capacidad nominal (L/min)	Cabeza nominal (m)	Capacidad máxima (L/min)	Max Cabeza (m)	Salida del motor (Kw)
MMF-220	25×25	50	14	150	16	0.37
MMF-221	25×25	50	21	180	22	0.75
MMF-222	25×25	50	34	180	36	15
MMF-223	25×25	50	35	189	38	22
MMF-440	40×40	100	11	240	13	0.37
MMF-441	40×40	150	15.5	330	19.5	0.75
MMF-542	50×40	200	22	450	25.5	1.5
MMF-552	50×40	200	22	450	25.5	1.5
MMF-542H	50×40	100	26.5	250	27.5	1.5
MMF-552H	50×40	100	26.5	250	27.5	1.5
MMF-543	50×40	250	26	500	31.5	2.2
MMF-553	50×40	250	26	500	31.5	2.2
MMF-543H	50×40	150	32	300	34	2.2
MMF-553H	50×40	150	32	500	34	2.2
MMF-544	50×40	250	28	500	32	3.0
MMF-545	50×40	250	31	520	35	3.7
MMF-554	50×50	250	28	500	32	3.0
MMF-555	50×50	250	31	520	35	3.7
MMF-653	65×50	450	16	600	20	2.2
MMF-654	65×50	500	18	700	27	3.0
MMF-655	65×65	500	25	860	28.5	3.7
MMF-662	65×65	600	9	900	14	1.5
MMF-663	65×65	650	11	1050	28.5	2.2
MMF-664	65×65	700	15	1150	14	3.0
MMF-665	65×65	750	15	1230	17	3.7
MMF-667	65×65	800	19	1350	20	5.5
MMF-867	80×65	800	22.5	1140	21	5.5
MMF-868	80×65	800	29	1350	27	7.5
